DICOM MCP Server — Usage Guide

Detailed usage examples, tool reference, and QA workflow patterns for the DICOM MCP server.

For installation and setup, see INSTALL.md. For project overview, see README.md.

Tip: Pair with a filesystem MCP server for maximum capability. The DICOM MCP server works well on its own for metadata inspection and validation. However, if Claude also has access to a filesystem MCP server with media reading support (e.g. the read_media_file tool), it can view rendered images directly, enabling an interactive visual feedback loop — render an image, inspect it, adjust ROI placement, measure, iterate — all within a single conversation. Without a filesystem MCP, Claude can still render images and save them to disk, but you'll need to open them yourself in a viewer and describe what you see.

---

Quick Examples

Finding test data

List all Dixon sequences in my test data directory

The server will use dicom_find_dixon_series to locate all Dixon sequences and show what image types are available.

Comparing fat/water selection

Compare the headers of these two files to see which Dixon images were selected:
- /data/test01/water.dcm
- /data/test01/fat.dcm

Validating a protocol

Validate that /data/scan01/image001.dcm matches our Siemens protocol:
- TR should be 4.5
- TE should be 2.3
- Manufacturer should be Siemens

Quick directory overview

Summarize what's in the /data/large_study directory

Finding specific files

Find all files in /data/study where the series description contains "MOST"
and echo time is greater than 10

Rendering an image

Render /data/liver_scan/slice_005.dcm with auto-windowing

Measuring SNR

Compute the SNR on /data/scan.dcm with a signal ROI at [100, 200, 50, 50]
in the liver and a noise ROI at [20, 20, 40, 40] in background air

Dumping full DICOM structure

Dump the full DICOM tree of /data/scan.dcm including nested sequences

Comparing UIDs across directories

Compare the SeriesInstanceUIDs between /data/study_v1 and /data/study_v2

Verifying segmentation references

Check that all segmentation files in /data/segs reference valid source images

Analysing MOLLI inversion times

Analyze the inversion times in /data/molli_series — is it a proper 5(3)3 scheme?

Inspecting Philips private tags

List all Philips Private Creator tags in /data/philips_scan/image001.dcm

Look up DD 001 element offset 0x85 in /data/philips_scan/image001.dcm

---

PII Filtering

When PII filtering is enabled (via DICOM_MCP_PII_FILTER=true), the following patient tags are replaced with [REDACTED] in tool output:

• PatientName
• PatientID
• PatientBirthDate
• PatientSex

Affected tools: dicom_get_metadata, dicom_compare_headers, dicom_summarize_directory, dicom_query.

All other tools do not expose patient data and are unaffected. See INSTALL.md for configuration instructions.

---

Tool Reference

Directory & File Discovery

dicom_list_files

List all DICOM files in a directory with metadata filtering.

Parameter	Type	Default	Description
directory	string	required	Path to search
recursive	bool	true	Search subdirectories
filter_sequence_type	string	null	Filter by type: dixon, t1_mapping, multi_echo_gre, spin_echo_ir, t1, t2, flair, dwi, localizer
count_only	bool	false	Return series breakdown with file counts instead of individual file listing
response_format	string	markdown	markdown or json

{
  "directory": "/data/test_suite",
  "filter_sequence_type": "dixon",
  "count_only": true
}

dicom_summarize_directory

Get a high-level overview of DICOM directory contents showing unique values and file counts for patient info, manufacturer, scanner model, field strength, institution, series descriptions, and sequence types.

When PII filtering is enabled, patient tags (Name, ID, DOB, Sex) are redacted.

Parameter	Type	Default	Description
directory	string	required	Path to directory
recursive	bool	true	Search subdirectories
include_series_overview	bool	true	Include per-series table with acquisition parameters (TR, TE, TI, FA)
response_format	string	markdown	markdown or json

{
  "directory": "/data/large_study",
  "include_series_overview": true
}

dicom_find_dixon_series

Find and analyse Dixon (chemical shift) sequences. Automatically identifies Dixon series and detects image types (water, fat, in-phase, out-phase).

Parameter	Type	Default	Description
directory	string	required	Path to search
recursive	bool	true	Search subdirectories
response_format	string	markdown	markdown or json

{
  "directory": "/data/body_comp_study"
}

dicom_search

Find DICOM files matching specific filter criteria using AND logic across multiple filters.

Parameter	Type	Default	Description
directory	string	required	Path to directory
filters	list[string]	required	Filter expressions (see syntax below)
recursive	bool	true	Search subdirectories
mode	string	summary	count, paths, or summary
response_format	string	markdown	markdown or json

Filter syntax:

Operator type	Examples
Text (case-insensitive)	"SeriesDescription contains MOST", "PatientName is not UNKNOWN", "SeriesDescription starts with Thigh", "SeriesDescription ends with Dixon"
Numeric/symbolic	"EchoTime > 10", "FlipAngle <= 15", "RepetitionTime = 516", "SeriesNumber != 0"
Presence	"InversionTime exists", "InversionTime missing"

Tags can be keywords (EchoTime) or hex codes (0018,0081).

{
  "directory": "/data/study",
  "filters": ["SeriesDescription contains MOST", "EchoTime > 10"],
  "mode": "paths"
}

---

Metadata & Validation

dicom_get_metadata

Extract DICOM header information organised by tag groups. When PII filtering is enabled, patient tags are redacted.

Parameter	Type	Default	Description
file_path	string	required	Path to DICOM file
tag_groups	list[string]	null	Groups to extract: patient_info, study_info, series_info, image_info, acquisition, manufacturer, equipment, geometry, pixel_data
custom_tags	list[string]	null	Additional tags as hex codes, e.g. ["0018,0080"]
philips_private_tags	list[dict]	null	Philips private tags to resolve (see below)
response_format	string	markdown	markdown or json

Philips private tags:

For Philips DICOM files, you can resolve private tags inline without using the separate dicom_query_philips_private tool. Each entry is a dict with dd_number and element_offset (and optionally private_group, default 0x2005).

{
  "file_path": "/data/philips_scan.dcm",
  "tag_groups": ["acquisition", "manufacturer"],
  "philips_private_tags": [
    {"dd_number": 1, "element_offset": 133}
  ]
}

Standard example:

{
  "file_path": "/data/scan.dcm",
  "tag_groups": ["acquisition", "manufacturer"],
  "custom_tags": ["0018,0080", "0018,0081"]
}

dicom_compare_headers

Compare DICOM headers across multiple files side-by-side. When PII filtering is enabled, patient tags are redacted.

Parameter	Type	Default	Description
file_paths	list[string]	required	2-10 files to compare
tag_groups	list[string]	["acquisition", "series_info"]	Which tag groups to compare
show_differences_only	bool	false	Only show tags that differ
response_format	string	markdown	markdown or json

{
  "file_paths": [
    "/data/test01/water.dcm",
    "/data/test01/fat.dcm",
    "/data/test01/in_phase.dcm"
  ],
  "show_differences_only": true
}

dicom_validate_sequence

Validate MRI sequence parameters against expected values.

Parameter	Type	Default	Description
file_path	string	required	DICOM file to validate
expected_parameters	dict	null	Expected values. Supported keys: RepetitionTime, EchoTime, InversionTime, FlipAngle, ScanningSequence, SequenceVariant, MRAcquisitionType
manufacturer	string	null	Expected manufacturer name
response_format	string	markdown	markdown or json

{
  "file_path": "/data/test.dcm",
  "expected_parameters": {
    "RepetitionTime": 4.5,
    "EchoTime": 2.3,
    "InversionTime": 100,
    "FlipAngle": 10
  },
  "manufacturer": "Siemens"
}

dicom_analyze_series

Comprehensive analysis of a complete DICOM series — checks parameter consistency across all files, verifies completeness (no missing instances), and identifies anomalies.

Parameter	Type	Default	Description
directory	string	required	Path containing series files
response_format	string	markdown	markdown or json

{
  "directory": "/data/series_001"
}

dicom_query

Query arbitrary DICOM tags across all files in a directory. Aggregates unique values with file counts. When PII filtering is enabled, patient tags are redacted.

Parameter	Type	Default	Description
directory	string	required	Path to directory
tags	list[string]	required	Tag keywords (e.g. "EchoTime") or hex codes (e.g. "0018,0081")
recursive	bool	true	Search subdirectories
group_by	string	null	Optional tag to group results by (e.g. "SeriesDescription")
response_format	string	markdown	markdown or json

{
  "directory": "/data/study",
  "tags": ["EchoTime", "FlipAngle"],
  "group_by": "SeriesDescription"
}

---

Structure & Comparison

dicom_dump_tree

Full hierarchical dump of DICOM structure, including nested sequences (SQ elements) with tree-character formatting. Useful for understanding complex DICOM files, inspecting nested structures (e.g. ReferencedSeriesSequence, SourceImageSequence), and debugging.

Parameter	Type	Default	Description
file_path	string	required	Path to DICOM file
max_depth	int	10	Maximum nesting depth to display
show_private	bool	true	Include private tags in output
response_format	string	markdown	markdown or json

When PII filtering is enabled, patient tags are redacted in the tree output. Pixel data (7FE0,0010) is always skipped.

{
  "file_path": "/data/scan.dcm",
  "max_depth": 5,
  "show_private": false
}

dicom_compare_uids

Compare UID sets between two DICOM directories. Identifies shared UIDs, UIDs unique to each directory, and reports counts and details.

Parameter	Type	Default	Description
directory1	string	required	First directory to compare
directory2	string	required	Second directory to compare
recursive	bool	true	Search subdirectories
compare_tag	string	SeriesInstanceUID	Tag to compare — keyword (e.g. StudyInstanceUID, SOPInstanceUID) or hex code (e.g. 0020,000E)
response_format	string	markdown	markdown or json

{
  "directory1": "/data/study_original",
  "directory2": "/data/study_reprocessed",
  "compare_tag": "SOPInstanceUID"
}

---

Segmentation & T1 Mapping

dicom_verify_segmentations

Validate that segmentation files correctly reference valid source images. Detects segmentation files by SOPClassUID (1.2.840.10008.5.1.4.1.1.66.4) or by the presence of SourceImageSequence. For each segmentation, checks that every ReferencedSOPInstanceUID points to an existing source file in the same directory.

Parameter	Type	Default	Description
directory	string	required	Directory containing segmentation and source files
recursive	bool	true	Search subdirectories
response_format	string	markdown	markdown or json

Reports total segmentation files, total references, matched vs unmatched counts, and details for any unmatched references.

{
  "directory": "/data/study_with_segmentations"
}

dicom_analyze_ti

Extract and validate inversion times from MOLLI / T1 mapping sequences. Handles vendor-specific differences automatically:

• Siemens / GE: reads the standard InversionTime tag (0018,0082)
• Philips: falls back to private tag DD 006, offset 0x72 in group 2005 (confirmed at (2005,xx72)) or DD 001, offset 0x20 in group 2001

Groups by series, sorts by instance number, and computes statistics including gap analysis to detect missing or out-of-range inversion times.

Parameter	Type	Default	Description
directory	string	required	Directory containing MOLLI / T1 mapping files
recursive	bool	true	Search subdirectories
gap_threshold	float	2500.0	Flag consecutive TI gaps exceeding this value (ms)
response_format	string	markdown	markdown or json

Output includes per series:

• Ordered TI list sorted by instance number
• Count of zero-value TIs (typically output maps, not acquisitions)
• Count of non-zero TIs (actual inversions)
• TI range, mean, and median
• Largest consecutive gap, with warning if exceeding the threshold

{
  "directory": "/data/molli_series",
  "gap_threshold": 3000.0
}

---

Philips Private Tags

dicom_query_philips_private

Query Philips private DICOM tags using DD number and element offset. Philips MRI scanners store proprietary metadata in private tag blocks whose assignments vary across scanners and software versions — this tool resolves them dynamically.

Parameter	Type	Default	Description
file_path	string	required	Path to a Philips DICOM file
dd_number	int	null	DD number to look up (e.g. 1 for "DD 001")
element_offset	int	null	Element offset within the DD block (e.g. 133 for 0x85)
private_group	int	0x2005	DICOM private group to search
list_creators	bool	false	List all Private Creator tags instead of resolving a specific one
response_format	string	markdown	markdown or json

Two usage modes:

1. List creators — discover what private tag blocks are available:

{
  "file_path": "/data/philips_scan.dcm",
  "list_creators": true
}

2. Resolve a specific tag — look up a known DD number and offset:

{
  "file_path": "/data/philips_scan.dcm",
  "dd_number": 1,
  "element_offset": 133
}

Common Philips DD numbers and offsets (group 2005):

DD #	Offset	Description
001	0x85	Shim calculation values
001	0x63	Stack ID
004	0x00	MR Series data object

---

Pixel Analysis

dicom_read_pixels

Extract pixel statistics from a DICOM file. Values are rescaled using RescaleSlope and RescaleIntercept when present (standard for Philips, common on Siemens/GE).

Parameter	Type	Default	Description
file_path	string	required	Path to DICOM file
roi	list[int]	null	Region of interest as [x, y, width, height] (top-left corner in pixel coordinates). If omitted, statistics cover the entire image.
include_histogram	bool	false	Include a binned histogram of pixel values
histogram_bins	int	50	Number of histogram bins
response_format	string	markdown	markdown or json

Returns: min, max, mean, standard deviation, median, 5th/25th/75th/95th percentiles, and pixel count.

{
  "file_path": "/data/liver_scan/slice_005.dcm",
  "roi": [100, 200, 50, 50],
  "include_histogram": true,
  "histogram_bins": 20
}

dicom_compute_snr

Compute signal-to-noise ratio from two ROIs in a DICOM image using the single-image method: SNR = mean(signal) / std(noise).

Parameter	Type	Default	Description
file_path	string	required	Path to DICOM file
signal_roi	list[int]	required	Signal region as [x, y, width, height]
noise_roi	list[int]	required	Noise/background region as [x, y, width, height]
response_format	string	markdown	markdown or json

Tip: Use dicom_render_image with overlay_rois first to visualise and verify ROI placement before measuring.

Note: Some manufacturers (notably Philips) zero-fill background air outside the reconstruction FOV, which results in zero noise standard deviation and infinite SNR. In such cases, consider using a homogeneous tissue region (e.g. subcutaneous fat or muscle) as the noise ROI instead.

{
  "file_path": "/data/liver_scan/slice_005.dcm",
  "signal_roi": [100, 200, 50, 50],
  "noise_roi": [20, 20, 40, 40]
}

dicom_render_image

Render a DICOM image to PNG with configurable windowing. Optionally overlays labelled ROI rectangles for visual verification.

Parameter	Type	Default	Description
file_path	string	required	Path to DICOM file
output_path	string	required	Path where the PNG will be saved
window_center	float	null	Manual window center
window_width	float	null	Manual window width
auto_window	bool	false	Auto-calculate window from 5th-95th percentile
overlay_rois	list[dict]	null	ROI overlays (see below)
show_info	bool	true	Burn in series description and windowing values
response_format	string	markdown	markdown or json

Windowing priority:

1. Explicit window_center + window_width parameters
2. auto_window=True → 5th-95th percentile range
3. DICOM header WindowCenter/WindowWidth values
4. Fallback → full pixel range (min to max)

ROI overlay format:

{
  "roi": [x, y, width, height],
  "label": "Signal (Liver)",
  "color": "green"
}

Available colours: red, green, blue, yellow, cyan, magenta, white.

Full example:

{
  "file_path": "/data/scan.dcm",
  "output_path": "/data/renders/scan_auto.png",
  "auto_window": true,
  "overlay_rois": [
    {"roi": [100, 200, 50, 50], "label": "Signal", "color": "green"},
    {"roi": [20, 20, 40, 40], "label": "Noise", "color": "red"}
  ]
}

Viewing rendered images: If Claude also has access to a filesystem MCP server with media reading capability (e.g. read_media_file), it can view the rendered PNG directly and use visual feedback to refine ROI placement iteratively — no need to switch to a separate DICOM viewer.

---

Output Formats

All tools support two output formats via the response_format parameter:

Markdown (default) — Human-readable with tables, formatting, and visual indicators. Best for conversational use in Claude Desktop.

JSON — Machine-readable structured data with consistent schemas. Best for programmatic processing or piping into other tools.

---

Performance Considerations

File scanning limits

All directory scanning tools are limited to processing 1000 files per scan by default. This limit is configurable via the DICOM_MCP_MAX_FILES environment variable (see INSTALL.md). If this limit is reached, a warning indicates results were truncated (and truncated: true in JSON output). Narrow your search to a more specific subdirectory if needed.

Optimisation tips

• Use dicom_summarize_directory instead of dicom_list_files when you only need an overview
• Use dicom_list_files with count_only: true for a compact series inventory
• Use dicom_search with mode: "count" to quickly check match counts before fetching details
• Use dicom_query instead of dicom_get_metadata on multiple files when you need aggregate tag values
• Set recursive: false to scan only the immediate directory
• For pixel tools, use dicom_render_image to verify ROI placement before running dicom_compute_snr
• Use dicom_dump_tree with show_private: false to focus on standard DICOM structure
• Use dicom_compare_uids to quickly detect differences between study directories without inspecting every file

---

QA Workflow Examples

Workflow 1: Dixon Image Selection Investigation

When you suspect incorrect fat/water selection:

1. dicom_find_dixon_series — locate the Dixon series
2. dicom_list_files with filter_sequence_type: "dixon" — see all Dixon files
3. dicom_compare_headers on suspected files — focus on ImageType tags
4. dicom_get_metadata — extract full headers for documentation

Workflow 2: Multi-Manufacturer Validation

When testing across GE, Siemens, and Philips:

1. dicom_summarize_directory — check patient info consistency and get a quick inventory
2. dicom_query with group_by: "SeriesDescription" — compare timing parameters across series
3. dicom_validate_sequence with manufacturer-specific expected parameters
4. dicom_compare_headers — identify parameter variations
5. Document differences for test specification updates

Workflow 3: Test Dataset Verification

Before running automated tests:

1. dicom_analyze_series on each test case directory
2. dicom_find_dixon_series to confirm Dixon sequences are present
3. dicom_validate_sequence to check protocol compliance
4. dicom_search to find files with unexpected parameter values (e.g. "FlipAngle != 15")

Workflow 4: Image Quality Assessment

For checking signal quality and image rendering:

1. dicom_render_image with auto_window: true — render the image and visually inspect
2. dicom_render_image with overlay_rois — place and verify signal/noise ROI positions
3. dicom_read_pixels — check pixel value distributions and histograms
4. dicom_compute_snr — measure SNR with verified ROI placements
5. Repeat across series or manufacturers to compare image quality

Note on Philips data: Background air is often zero-filled, making the traditional background-air SNR method return infinite. Use a homogeneous tissue region (subcutaneous fat, muscle) as the noise proxy instead.

Workflow 5: MOLLI / T1 Mapping Validation

When verifying T1 mapping acquisitions across vendors:

1. dicom_analyze_ti — extract all inversion times, check for proper MOLLI scheme (e.g. 5(3)3 = 11 TI-weighted images + output maps)
2. Check for gap warnings — large gaps between consecutive TIs may indicate missing heartbeats or acquisition failures
3. dicom_dump_tree on a representative file — inspect nested sequence structure if TI extraction fails
4. For Philips data: dicom_query_philips_private with dd_number: 6, element_offset: 114 (0x72) — manually verify the private TI tag if needed

Workflow 6: Segmentation Verification

When validating segmentation files reference the correct source images:

1. dicom_verify_segmentations — check all segmentation-to-source references in one pass
2. Review any unmatched references — missing source files or incorrect ReferencedSOPInstanceUIDs
3. dicom_compare_uids with compare_tag: "SOPInstanceUID" — compare two directories to find missing or extra files

Workflow 7: Philips Private Tag Investigation

When investigating Philips-specific metadata:

1. dicom_query_philips_private with list_creators: true — discover available DD blocks
2. dicom_query_philips_private with specific dd_number and element_offset — resolve individual tags
3. Or use dicom_get_metadata with the philips_private_tags parameter to extract private tags alongside standard metadata in a single call

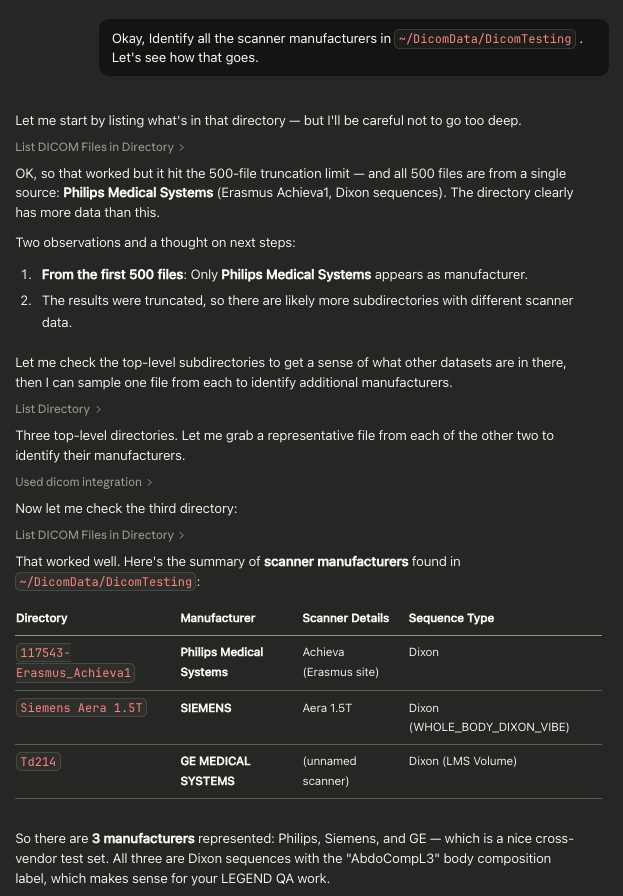

Example Screenshot From Claude Desktop
